WIWA VULKAN GX

  • Uniform material flow
  • Precise results due to low pulsation
  • Maximum performance even in the toughest areas of application and in continuous operation
Brochure

Description

The WIWA extrusion pumps for conveying, proven a thousand times over.

The WIWA VULKAN GX range of scoop piston pumps comprises a total of 19 pumps in four performance classes with different delivery rates and pressure ratios, making it probably one of the most comprehensive series worldwide. Based on the wide range of pumps and accessories, the ideal combination can be put together for almost any application.

Suitable accessories
Selection of project references
Germany

Window system manufacturer

Bonding insulation elements for roller shutter boxes
Germany

AUMO GmbH

Automated windshield bonding for the automotive industry
Poland

Automotive manufacturer

Connector pin encapsulation in the vehicle industry

Technical Data

Model 79.45
Pressure ratio 45:1
Output per cycle 79 ccm (2.6 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 360 bar (5,221 psi)
Order numbers
N 0668166
RS 0666444
Model 79.24
Pressure ratio 24:1
Output per cycle 79 ccm (2.6 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 192 bar (2,785 psi)
Order numbers
N 0668165
RS 0668174
Model 134.14
Pressure ratio 14:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 112 bar (1,624 psi)
Order numbers
N 0668167
RS 0668175
Model 134.26
Pressure ratio 26:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 3 bar (44 psi)
Max. operating pressure 78 bar (1,131 psi)
Order numbers
N 0668168
RS 0668176
Model 134.54
Pressure ratio 54:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 432 bar (6,266 psi)
Order numbers
N 0668173
RS 0668177
Model 134.72
Pressure ratio 72:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 6.5 bar (94 psi)
Max. operating pressure 468 bar (6,788 psi)
Order numbers
N 0668169
RS 0668178
Model 330.29
Pressure ratio 29:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 232 bar (3,365 psi)
Order number
N 0668170
Model 330.40
Pressure ratio 40:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 320 bar (4,641 psi)
Order number
N 0668171
Model 330.62
Pressure ratio 62:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 6 bar (87 psi)
Max. operating pressure 372 bar (5,395 psi)
Order number
N 0667080
Model 580.23
Pressure ratio 23:1
Output per cycle 580 ccm (19.3 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 184 bar (2,669 psi)
Order number
N 0668172
Model 580.35
Pressure ratio 35:1
Output per cycle 580 ccm (19.3 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 280 bar (4,061 psi)
Order number
N 0665422
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction

Fields Of Application

Automotive

Insulation

Railcar construction

Chemical Industry

Apparatus and mechanical engineering

Joineries

Wind power industry

Bonding

Building and corrosion protection

Marine Industry

Conveyor and paint supply

General Industry

Aircraft industry

Wood and furniture industry

Materials

  • Adhesives and glues
  • PVC and other sealing materials
  • Greases and lubricants
  • Printing inks
  • Bitumen
  • Underbody protection
  • Pasty coating materials and other medium- and high-viscosity media
  • Mastics
  • Silicone
  • Butyls
  • Urethanes
  • Epoxies
  • Acrylic

The WIWA extrusion pumps for conveying, proven a thousand times over.

The WIWA VULKAN GX range of scoop piston pumps comprises a total of 19 pumps in four performance classes with different delivery rates and pressure ratios, making it probably one of the most comprehensive series worldwide. Based on the wide range of pumps and accessories, the ideal combination can be put together for almost any application.

Suitable accessories
Selection of project references
Germany

Window system manufacturer

Bonding insulation elements for roller shutter boxes
Germany

AUMO GmbH

Automated windshield bonding for the automotive industry
Poland

Automotive manufacturer

Connector pin encapsulation in the vehicle industry
Model 79.45
Pressure ratio 45:1
Output per cycle 79 ccm (2.6 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 360 bar (5,221 psi)
Order numbers
N 0668166
RS 0666444
Model 79.24
Pressure ratio 24:1
Output per cycle 79 ccm (2.6 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 192 bar (2,785 psi)
Order numbers
N 0668165
RS 0668174
Model 134.14
Pressure ratio 14:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 112 bar (1,624 psi)
Order numbers
N 0668167
RS 0668175
Model 134.26
Pressure ratio 26:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 3 bar (44 psi)
Max. operating pressure 78 bar (1,131 psi)
Order numbers
N 0668168
RS 0668176
Model 134.54
Pressure ratio 54:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 432 bar (6,266 psi)
Order numbers
N 0668173
RS 0668177
Model 134.72
Pressure ratio 72:1
Output per cycle 134 ccm (4.5 fl.oz.)
Max. inbound air pressure 6.5 bar (94 psi)
Max. operating pressure 468 bar (6,788 psi)
Order numbers
N 0668169
RS 0668178
Model 330.29
Pressure ratio 29:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 232 bar (3,365 psi)
Order number
N 0668170
Model 330.40
Pressure ratio 40:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 320 bar (4,641 psi)
Order number
N 0668171
Model 330.62
Pressure ratio 62:1
Output per cycle 330 ccm (11 fl.oz.)
Max. inbound air pressure 6 bar (87 psi)
Max. operating pressure 372 bar (5,395 psi)
Order number
N 0667080
Model 580.23
Pressure ratio 23:1
Output per cycle 580 ccm (19.3 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 184 bar (2,669 psi)
Order number
N 0668172
Model 580.35
Pressure ratio 35:1
Output per cycle 580 ccm (19.3 fl.oz.)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 280 bar (4,061 psi)
Order number
N 0665422
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction

Fields Of Application

Automotive

Insulation

Railcar construction

Chemical Industry

Apparatus and mechanical engineering

Joineries

Wind power industry

Bonding

Building and corrosion protection

Marine Industry

Conveyor and paint supply

General Industry

Aircraft industry

Wood and furniture industry

Materials

  • Adhesives and glues
  • PVC and other sealing materials
  • Greases and lubricants
  • Printing inks
  • Bitumen
  • Underbody protection
  • Pasty coating materials and other medium- and high-viscosity media
  • Mastics
  • Silicone
  • Butyls
  • Urethanes
  • Epoxies
  • Acrylic

These products may also interest you.

WIWA LOW PRESSURE PUMPS GX

Pressure ratio: 1.8 - 15 :1

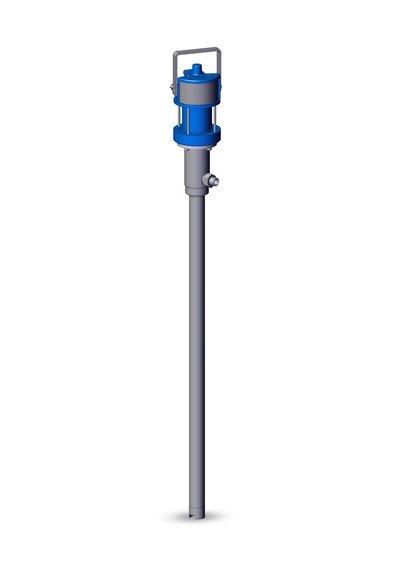

WIWA OIL PUMPS
